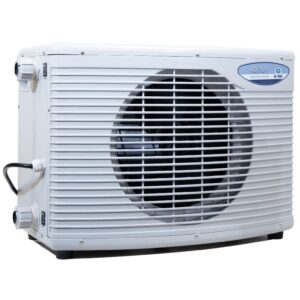

1 JBJ Chiller HP Arctica – 230V

1 JBJ Chiller HP Arctica - 230V Overview

The 1 JBJ Chiller HP Arctica - 230V, part of the JBJ Arctica-Commercial Series, is specifically designed for coldwater systems that must be kept constant at 59°F. This model features a Titanium "Helix" heat exchanger, making it ideal for both fresh and saltwater applications. These chillers range from 1/2 HP to 3 HP, all providing powerful cooling performance with a remote Auto IC Temperature Control System.

Advanced Features of the 1 JBJ Chiller

Titanium "Helix" Heat Exchanger

The 1 JBJ Chiller HP Arctica - 230V includes a unique titanium coil design that allows maximum contact exposure. Titanium is the best element for heat exchange and corrosion resistance on the market.

Energy Efficiency of JBJ Chiller HP Arctica

This chiller provides the highest BTU (British Thermal Units) heat removal capacity with the lowest amperage draw, ensuring efficient energy use.

Full Auto IC Digital LED Control System

• The state-of-the-art digital LED thermostat system automatically controls your temperature within +1/-1°F from your desired set point.
• The bright LED allows for constant temperature reading with an easy calibration function.
• A "Thermal Chip" prevents the heat exchanger from freezing due to controller failure or low water flow.
• The Smart-Chip stores and resets the controller in case of a power failure.

Easy Hook-Up and Installation

• The design allows the unit to be hooked up without any tools or hard plumbing.
• Commercial-grade compression fittings can be used with 1" & 1.25" PVC.
• These watertight fittings handle up to a maximum working pressure of 25 PSI.

Low Noise and Vibration Level

• The commercial series chillers provide the lowest noise and vibration levels in the industrial classification, making them ideal for quiet environments.

Convenient Side Handles

• ABS molded handles allow for easy lifting and moving.

1 JBJ Chiller HP Arctica Specifications

• UL Listed
• Recommended Aquarium Size: 300 gallons
• BTU: 12,000 BTU/h
• Amps: 5.5
• Dimensions: 26" x 15" x 19" (WxDxH)
• Flow Rate: 640 - 960 gph
• Inlet/Outlet Size: 1"
• Weight: 79 lbs
