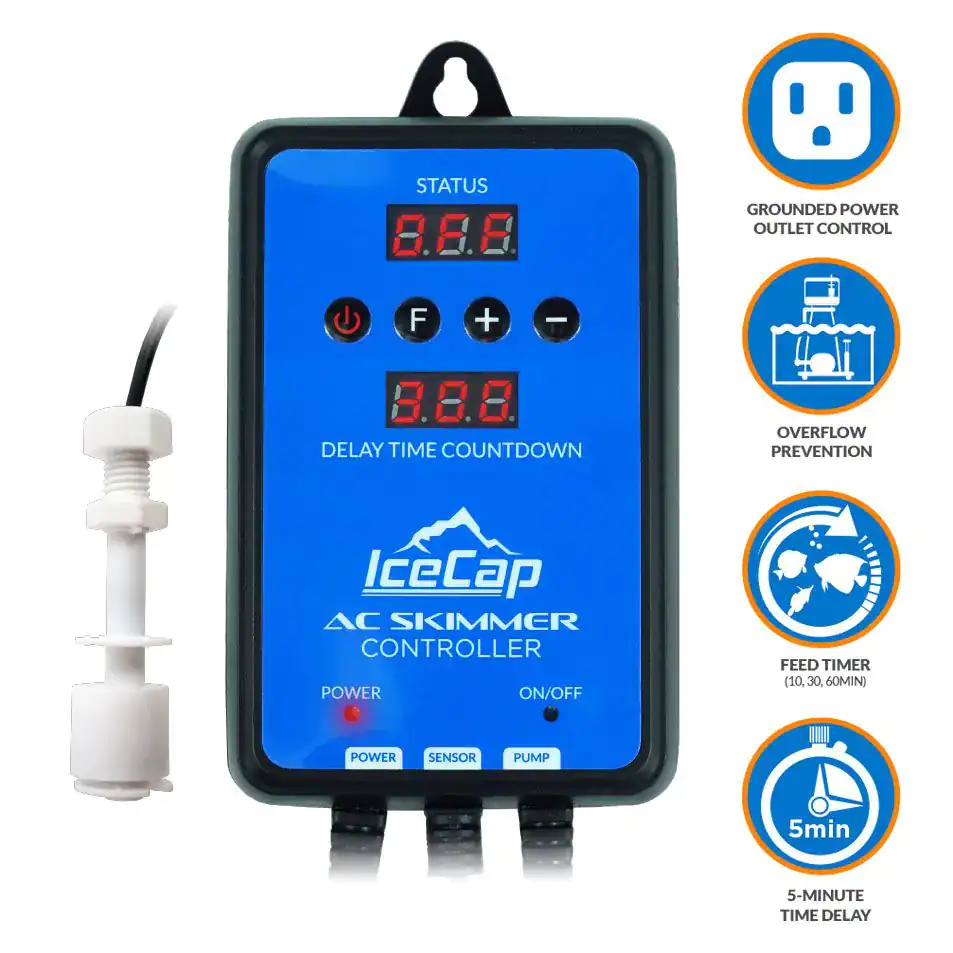

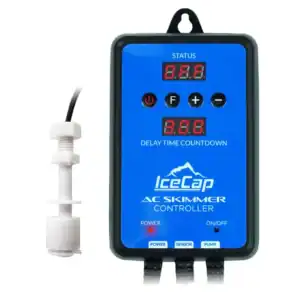

IceCap AC Skimmer Controller

IceCap AC Skimmer Controller for Reliable Overflow Protection

IceCap AC Skimmer Controller delivers straightforward protection for protein skimmers by stopping overflows before they create problems. You can find this controller from IceCap under Automate & Monitor, alongside other tools designed to stabilize daily aquarium operation.

Instead of relying on constant supervision, this controller adds automated safeguards that keep skimmers running within safe limits.

How the IceCap AC Skimmer Controller Improves Daily Skimmer Control

The IceCap Skimmer Controller manages power to AC protein skimmers using a float switch and timed logic. As a result, it prevents accidental overflows while supporting normal feeding routines.

Designed for AC Protein Skimmers and Waste Collectors

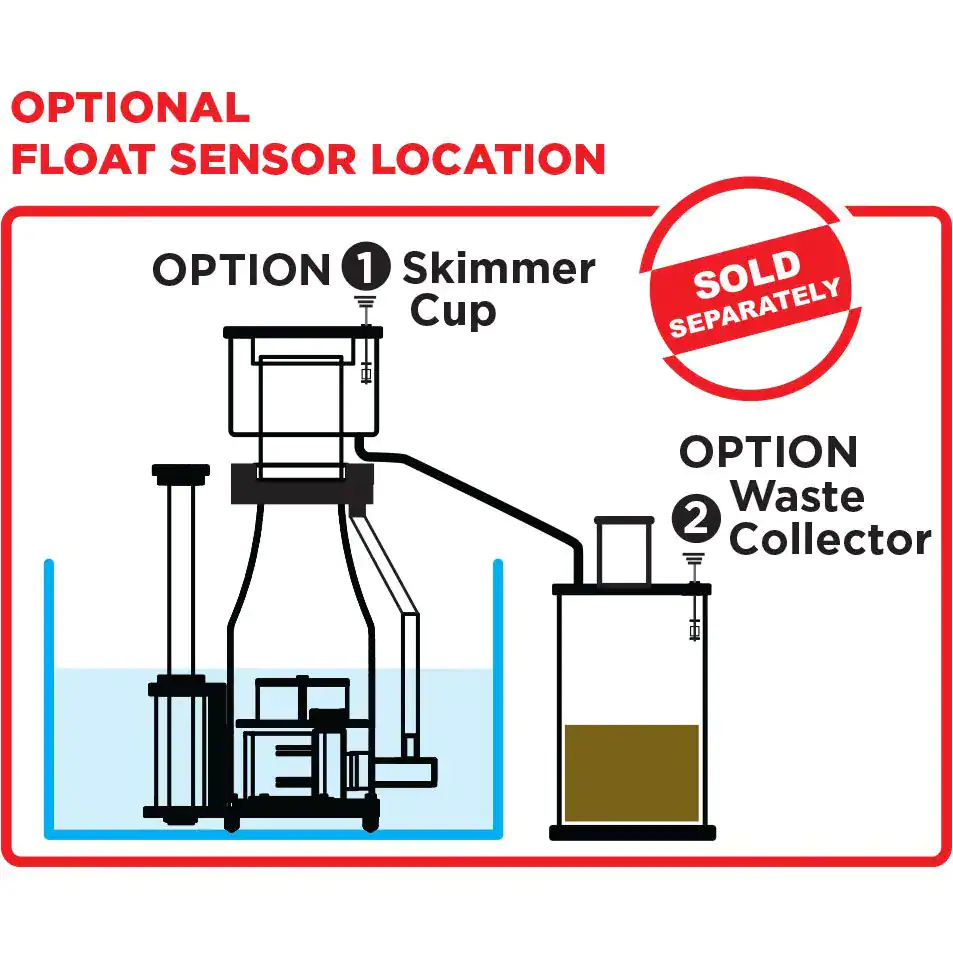

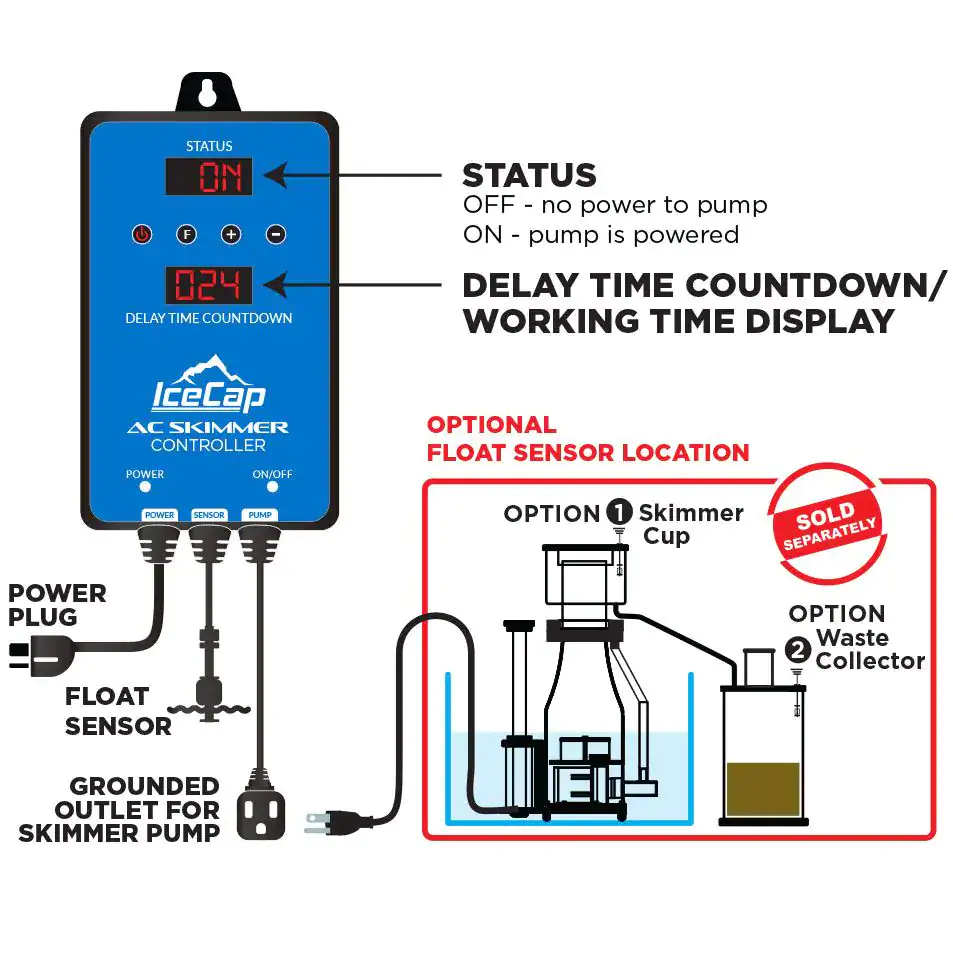

• Connects directly to skimmer lids or waste collectors

• Interrupts power when rising water triggers the float switch

• Resumes operation after a controlled delay

Because it works independently of skimmer brand, setup stays simple and predictable.

Built-In Timing and Feed Functions

The IceCap Skimmer Controller includes adjustable feed timers and restart delays. Therefore, skimmers avoid immediate restart after feedings or power interruptions.

Feed and Delay Options

• Feed timer selections: 10, 30, or 60 minutes

• Fixed 5-minute restart delay after shutoff

• Adjustable operating intervals from 1 to 24 hours

These controls reduce erratic skimmer behavior and improve consistency.

Electrical and Physical Specifications

The controller supports standard household power and handles most AC skimmer pumps safely.

Controller Specifications

• Input power: 100–240 VAC

• Frequency: 50/60 Hz

• Maximum load: 10 amps

• Controller body size: 3.1 × 5.4 × 1.1 inches

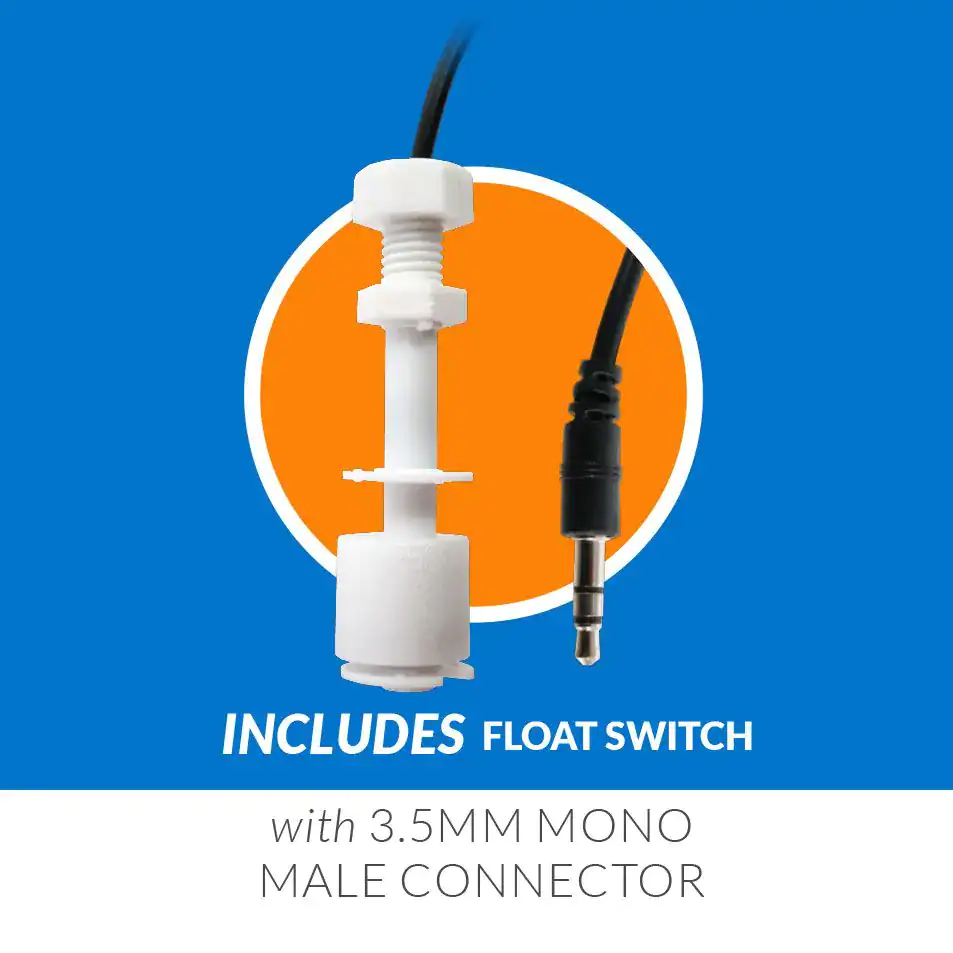

• Float switch cord length: 6 feet

• Pump outlet cord length: 7 inches

• Float switch probe hole size: 3/8 inch

Controller-only design requires a compatible skimmer or waste collector, sold separately.

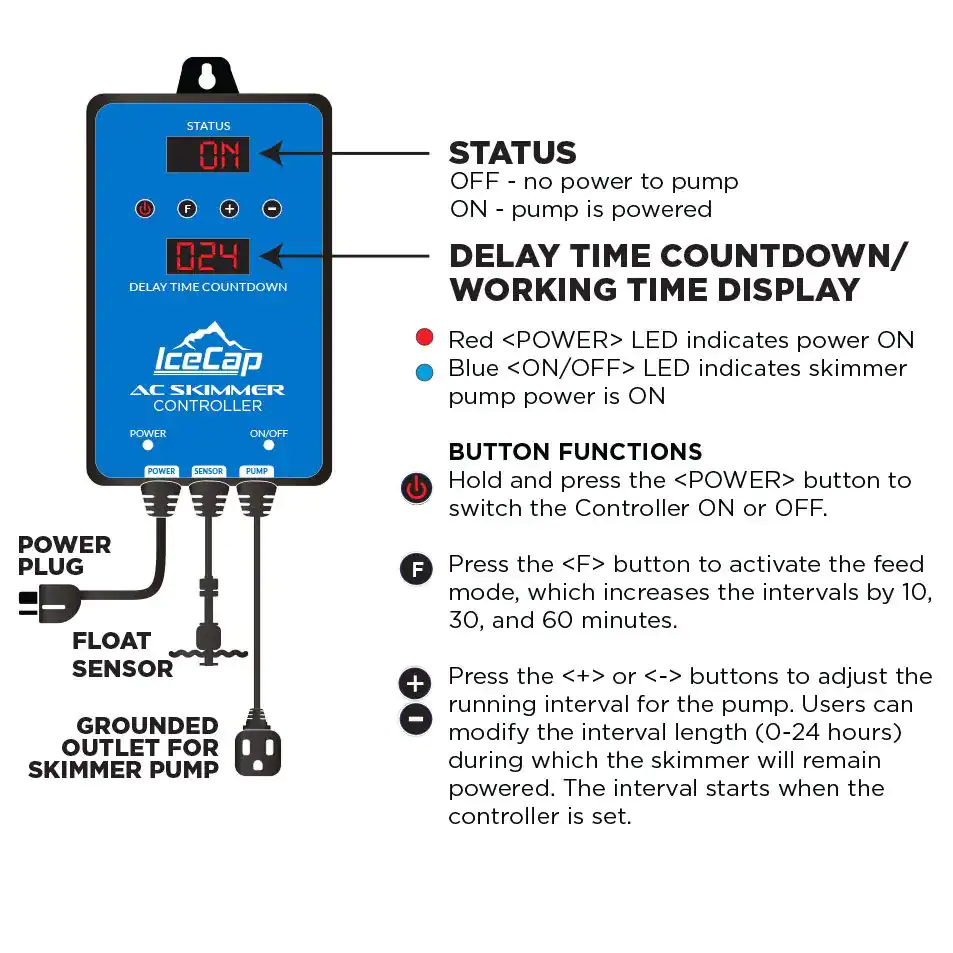

Simple Visual Indicators and Button Controls

The IceCap Skimmer Controller uses clear LED indicators and minimal buttons for quick operation.

LED Indicators

• Red LED indicates controller power

• Blue LED shows active output power

Button Functions

• Power button toggles controller on or off after a five-second press

• Feed button cycles through feed timer options

• Plus and minus buttons adjust operating intervals

Controls remain intuitive, even during maintenance or feeding.

Commonly Asked Questions About the IceCap AC Skimmer Controller

Does the Skimmer Controller work with all skimmers?

It works with most AC-powered protein skimmers drawing 10 amps or less.

Can the Skimmer Controller prevent skimmer cup overflows?

Yes. The float switch shuts off power when water rises too high.

Does the controller restart automatically after a shutdown?

Yes. It restarts after a built-in five-minute delay.

Is the Skimmer Controller safe for indoor use?

Yes. It is designed specifically for indoor household aquarium systems.

Does this controller include a warranty?

IceCap includes a one-year limited warranty against defects.

Summary

The IceCap AC Skimmer Controller adds dependable automation to protein skimmers by preventing overflow, managing feed pauses, and stabilizing restart timing. Its simple design and reliable logic make it a practical upgrade for AC skimmer systems.
