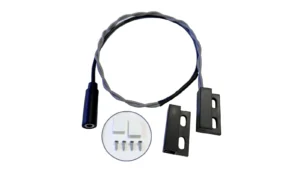

HYDROS Door (REED) Switch (0-10V)

HYDROS Door REED Switch 0–10V - Add Smart Control To Your Reef Setup

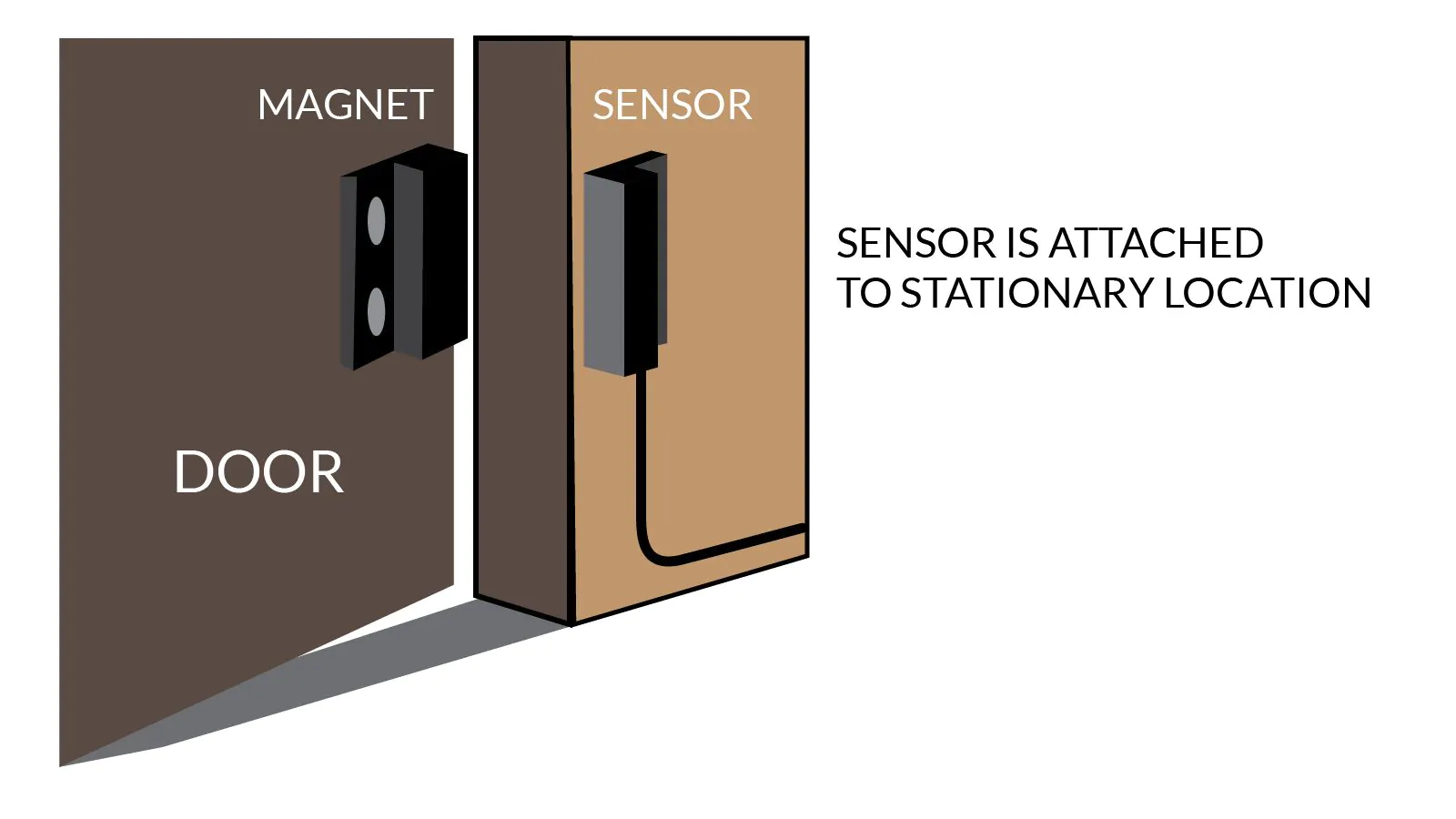

The HYDROS Door Reed Switch 0–10V is a compact sensor that adds real-world logic to your aquarium cabinet. With a simple install and reliable operation, this switch lets your system know when the door opens—triggering lighting, alarms, or custom events. No more guessing if your cabinet door was left ajar after lights-out.

Expand HYDROS Functionality with the Hydros Door REED Switch 0–10V

From triggering a light when you open the stand to sending an alert when someone (or some thing) gets curious, this little switch adds big smarts. It's an easy controller upgrade accessory that’s surprisingly useful—especially when you're juggling cables, buckets, and a skimmer that’s up to no good.

What It Can Do:

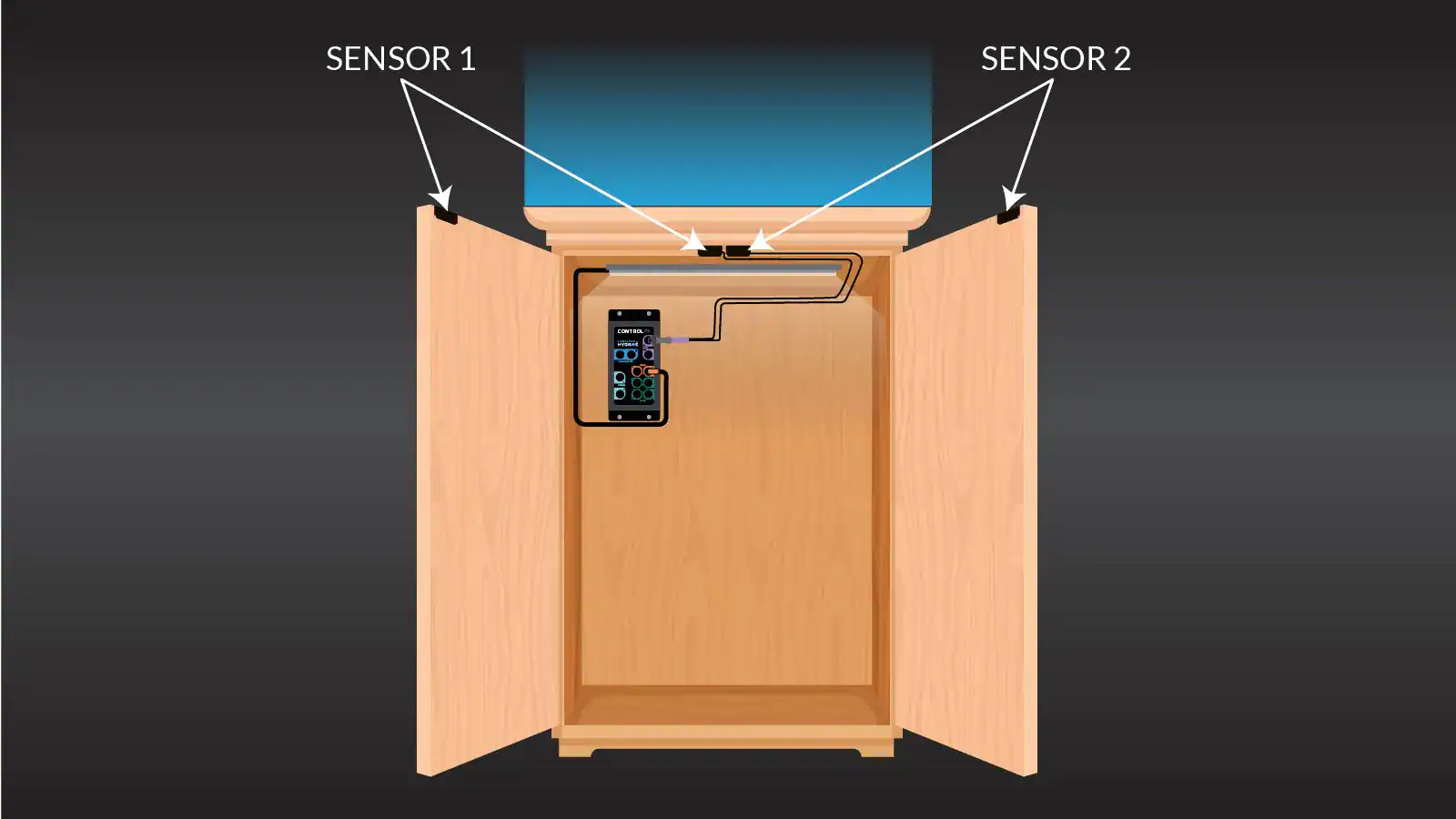

• Automatically turn on cabinet lights when doors open

• Trigger a sound or app notification if a door opens unexpectedly

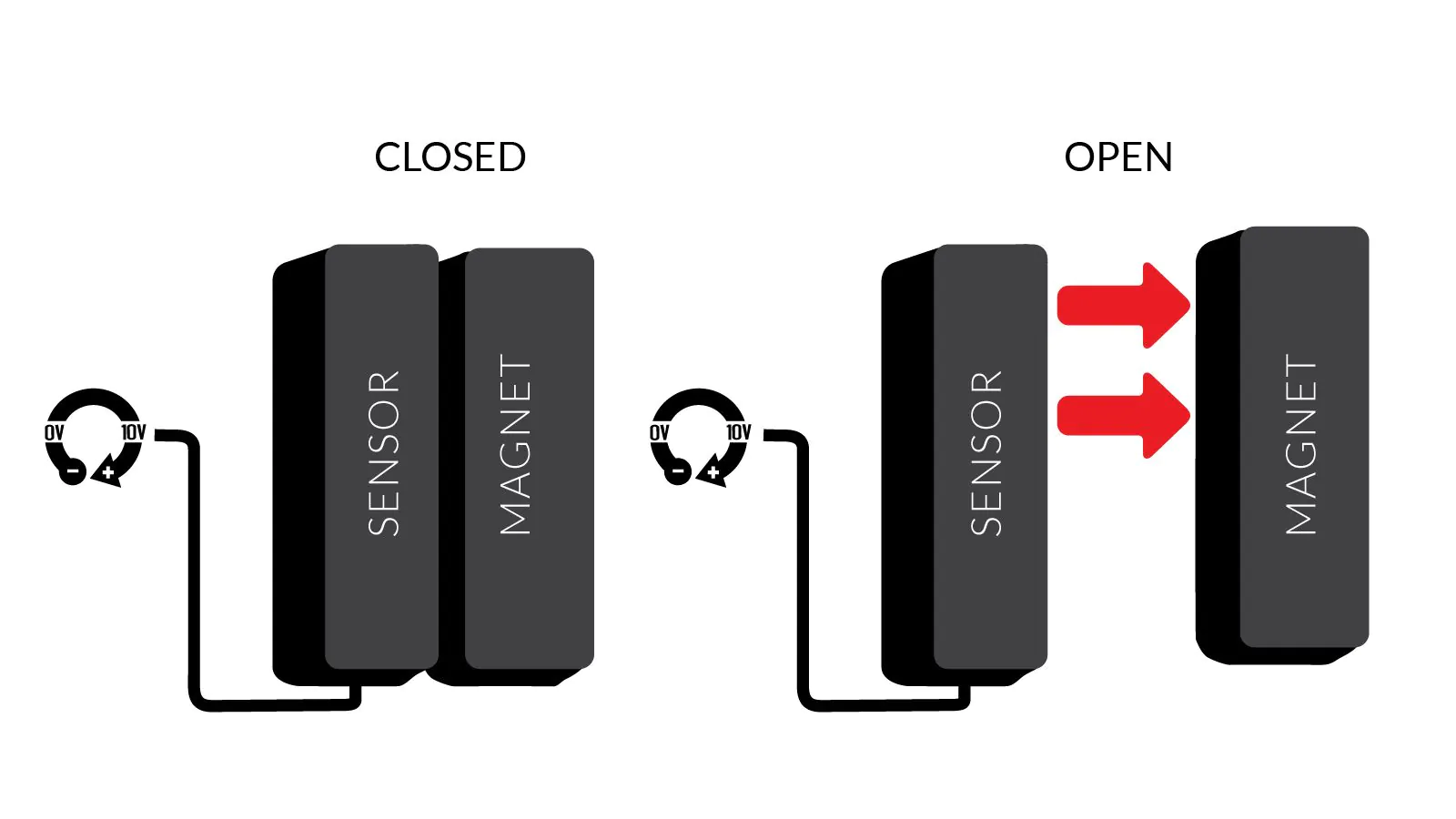

• Add automation to your HYDROS control system via 0–10V logic

• Works perfectly for sump access, maintenance alerts, or childproofing

Hydros Door Reed Switch 0–10V Specs

When precision matters, this switch delivers reliable sensing every time—no drama, no drift.

• Sensing Distance: 0.4–0.6 inches (10–15mm)

• Switch Dimensions: 1.14 in (L) × 0.61 in (W) × 0.35 in (H)

• Power Specs:

  • Working Voltage: 1–100V

  • Working Current: 0.5A

  • Max Power: 10W

• Service Life: Rated for over 1,000,000 operations

What You’ll Need to Use the Hydros Door Reed Switch 0–10V

Before you get started, make sure your system is HYDROS-ready with the right ports and cables.

Required Items:

• HYDROS Control with an available 0–10V Input Port

• HYDROS 0–10V Quad Cable with at least one open channel

Warranty Details

CoralVue and HYDROS guarantee this product is free from defects in materials and workmanship for 1 year from the purchase date.
